PTFE Belt

We supply all kinds of PTFE-coated glass fabric conveyor belts and Kevlar belts and can produce these quickly and accurately at any size, with the joint most suitable for you, for example, with a welded or detachable joint.

PTFE-coated open mesh belt, which is used in shrink or drying tunnels. This conveyor belt can be supplied with detachable joint (see photographs below), the edges can be finished with a high flex or Kevlar strip.

The most common PTFE-coated belts have an inner layer of glass fabric, which is mechanically strong, has a good chemical resistance and can be used at low and high temperatures. Moreover, this material can be supplied in a large number of thicknesses and types.

Advantages

Excellent anti-adhesive
Good air flow (open mesh belt)
High tensile strength at limited volume
Light constructions possible in the oven build
Very low friction
Temperature resistance from -75 to +260°C
Non toxic
Suitable for food products
Mechanically strong and light in weight

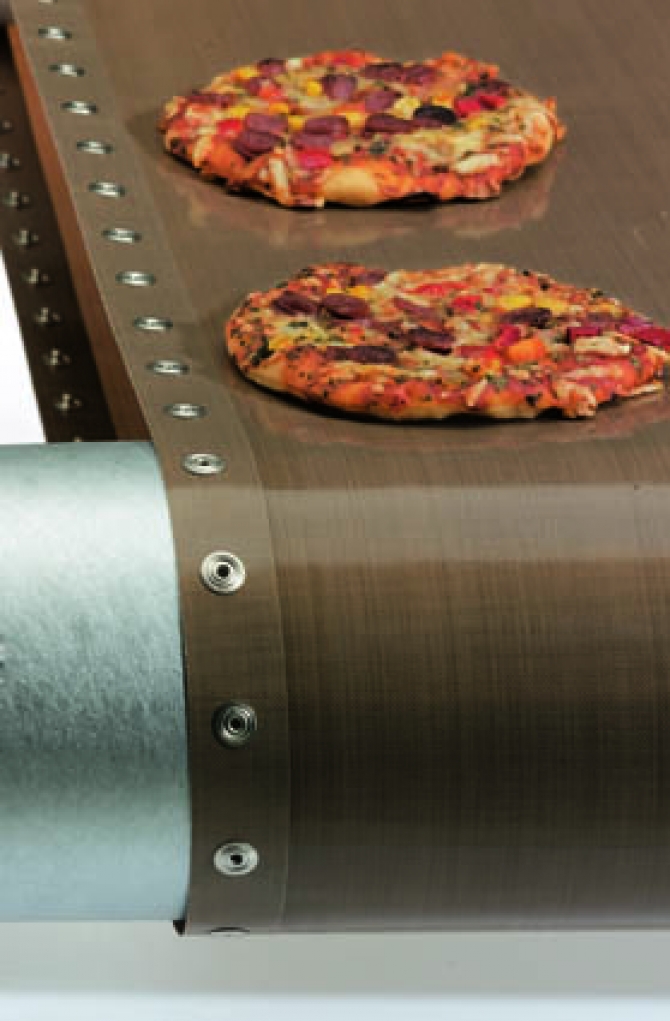

All conveyor belts can be fitted with several kinds of edge reinforcement, such as a high flex- or a Kevlar edge reinforcement. Various types of guiding systems are also available, for example, the metal studs for heat-seal belts.

Moreover, the conveyor belts can be produced without ends, by using welded joints, or a detachable joint - see the photographs below.

Material open mesh B2610, edge reinforcement 25 mm "high flex" endless with a peek spiral joint

Material B110, endless with a finger joint with cover of B103

Material open mesh B2610, edge reinforcement 25 mm "high flex" endless with a dismountable Kevlar spiral

Material B110, edge reinforcement 25 mm with metal studs, endless with overlap joint 25 mm x 30 degrees

Applications

UV dryers
Infra red dryers
Shrinktunnels
Coolingtunnels
Laminating machines
Drying ovens
Bake- and roast belts
Glue processes

Types of industrie

Packaging
Food
Confection
Textile- and paper
Carpet
Rubber

Physical properties for PTFE-coated glass fabric belts

Style

Max. width (mm)

Weight (gr/m)

Nom. thickness (mm)

Tensile strength breaking (N/10mm)

Elongation breaking

Tension force at 1% elongation

Structure

B1610

1500

239

0,13

280

2,24

124

dicht

B1612

1500

293

0,15

300

2,30

130

dicht

B1620

2500

488

0,25

550

2,70

162

dicht

B1628

1500

678

0,35

640

2,60

197

dicht

B1654

3300

1085

0,68

980

4,10

218

dicht

B2390

1500

530

0,65

600

2,00

332

gaas 1mm

B2470

2000

435

0,70

310

2,40

162

gaas 2mm

B2610

4600

460

0,90

300

2,90

130

gaas 4mm

Use your phone lying or check this page on a bigger screen to see the specifications.

The values in this table are indicative and not intended as specifications.

PTFE-coated glass fabric belts can be used for the most common applications. At high load, high speeds or when using with hot water or steam, it is better to use PTFE-coated aramide fabric belts. Of course, many other types are available, for example filled with 7% carbon, which allows the static electricity to be discharged gradually. Only the most commonly used types are mentioned above.
